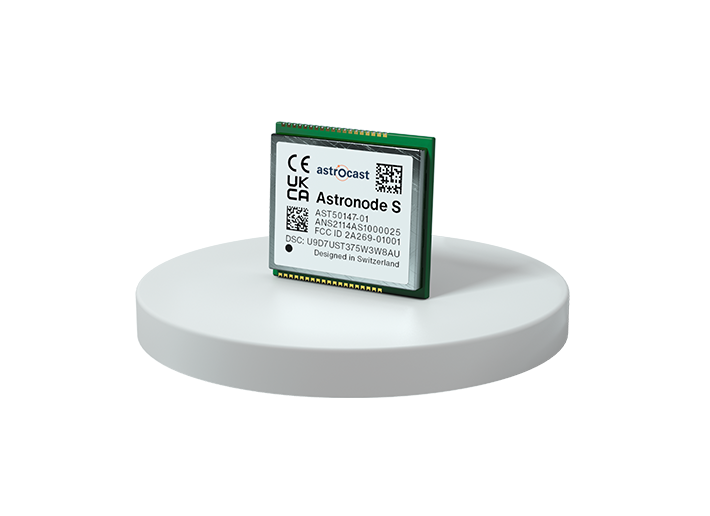

Astronode S

Compact surface mount module for highly integrated, battery powered IoT systems

BIDIRECTIONAL

The Astronode S sends your messages, gets them acknowledged and receives your commands anytime, anywhere.

COST-EFFICIENT

The Astronode S total cost of ownership is up to 3 times lower than traditional satellite IoT alternatives.

LOW-ENERGY

The Astronode S protocol is optimized for low energy operation, with the lowest peak power available.

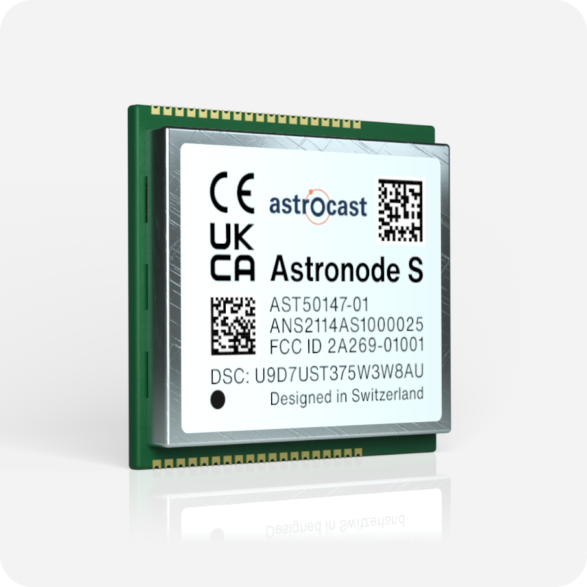

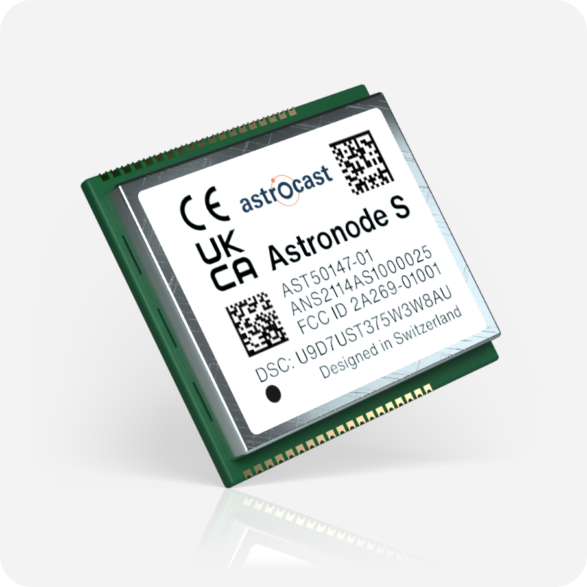

A bidirectional satellite communication module with a serial interface and a compact, surface mount form factor

Astronode S

$49

discount on volume applies

Power supply: +3.3 VDC
Peak power consumption (RF Tx): <0.35 W
Deep sleep current: <500 nA
Serial interface: 3.3 V UART
Antenna connection via solder pin
Encryption: Two-level 256-bit AES with unique device key
Dimensions: 35 mm x 31 mm x 4.1 mm
Footprint: Castellated pads
Certified: CE & FCC

Buy Astronode S on Mouser Electronics >

Download Astronode S brief

Discover our data plans

Plan1

$1.30/month

Plan5

$2.40/month

Plan15

$3.50/month

Plan30

$6/month

Plan60

$11/month

No activation fee, no hidden fee.

Automated billing system applies the most cost-effective plan for your devices.

Get started

Take your IoT strategy further

Do you want to scale up your IoT operations?

Check our Astropreneur Program

Industry recognition

FAQ

Yes, the Astronode S is compliant with CE, FCC, RoHS and REACH.

The Astronode S needs a power supply of 3.3 V with peak currents of about 80 mA. A wide range of available battery technologies and form factors can be used in combination with a carefully designed power supply circuit.

For more information, please visit our Astrocast Documentation Platform.
