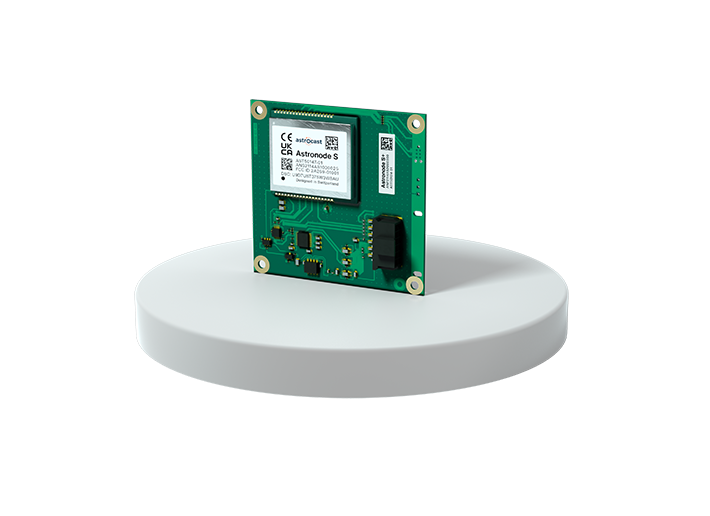

Astronode S+
A certified industrial satellite communication device, ready to install and connect
BIDIRECTIONAL
The Astronode S+ sends your messages, gets them acknowledged and receives your control commands.
COST-EFFICIENT
Ready to connect. No resources required in electronic and RF design, enabling short time to market.
SMALL FORM FACTOR
The integration of the Astronode S+ and the L-Band patch antenna means compact size and robust data connection.
Bringing your system as close to satellite connectivity as a cable connection

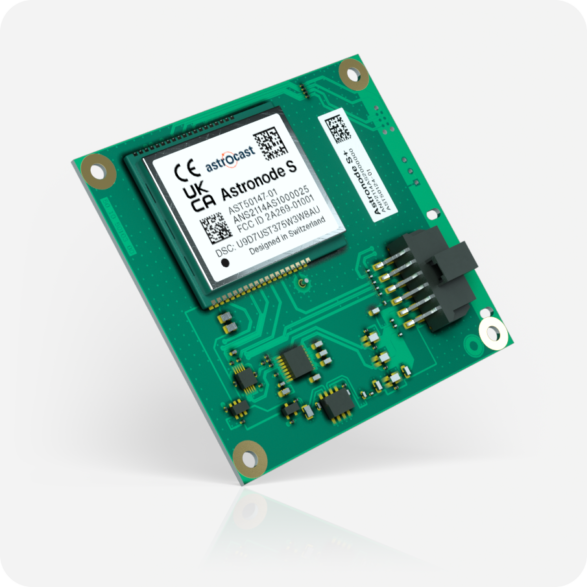

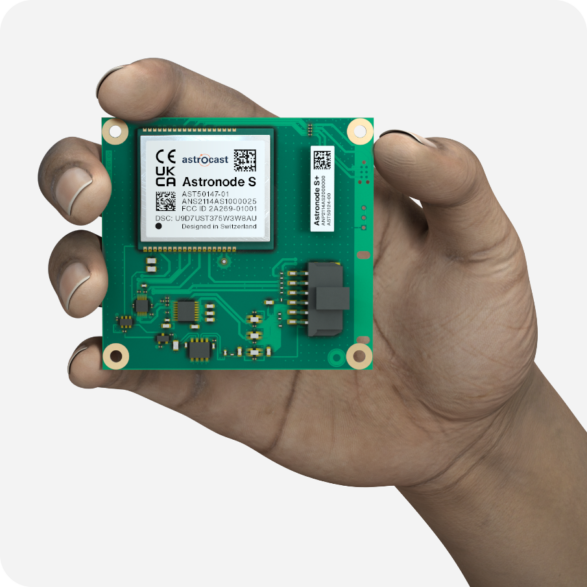

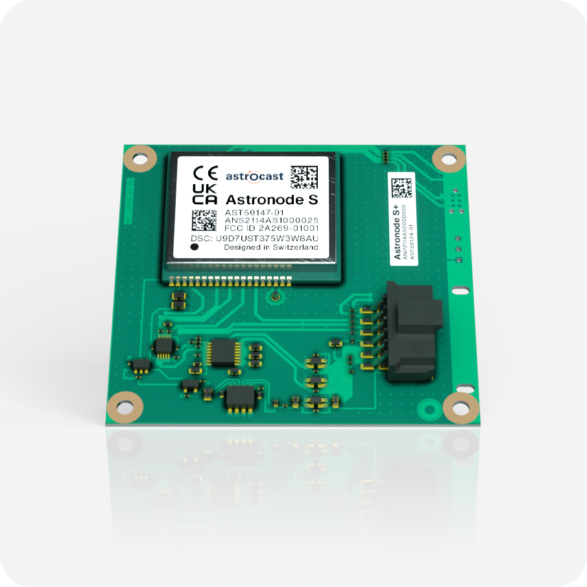

Astronode S+
$79
discount on volume applies
- Power supply options: +3.3 VDC and +5 V
- Peak power consumption (RF Tx): <0.35 W
- Deep sleep current: <500 nA
- Interface options
- 3.3 V UART and Astronode S digital pins
- 5 V RS232
- Connector: Molex Nano-Fit

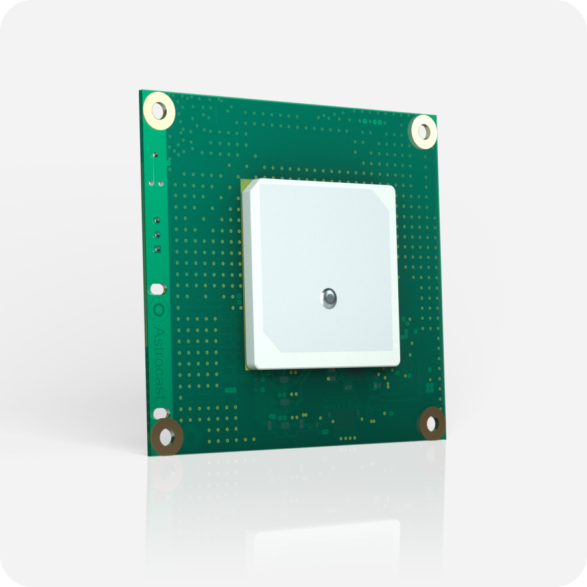

- Integrated Astronode Patch Antenna (L-Band)
- Dimensions: 70 mm x 65 mm x 14.15 mm
- Certified: CE & FCC
Related Astronode products
Astronode S
Compact surface mount module for highly integrated, low-energy IoT systems
Astronode Patch Antenna
Compact ceramic patch antenna optimized for the Astrocast network
Discover our data plans
Plan1
$1.30/month
Plan5
$2.40/month
Plan15
$3.50/month
Plan30
$6/month
Plan60
$11/month
No activation fee, no hidden fee.
Automated billing system applies the most cost-effective plan for your devices.
Take your IoT strategy further
Do you want to scale up your IoT operations?
Check our Astropreneur ProgramFAQ
Do you provide a cable for connecting the Astronode S+?
We provide a basic cable assembly in order to enable your R&D a quick integration of the Astronode S+ into your system. Astrocast will be happy to help find a cable assembly solution for your specific needs, please contact us.
I would like to build the Astronode S+ into my existing system, what do I need to consider?
When mounting the Astronode S+ in an existing system enclosure, it needs free view to the sky, with its antenna pointing up. Avoid metallic enclosures and parts nearby.
What kind of hardware do I need to drive the Astronode S+?
Any kind of programmable PC or embedded controller with a digital interface at 3.3 V or a RS232 interface at 5.0 V will work perfectly together with the Astronode S+. Check our Git repo to see an example asset code with STM32.
Where can I find all technical information and documentation about the Astronode S+?
On our Astrocast Documentation Platform.
