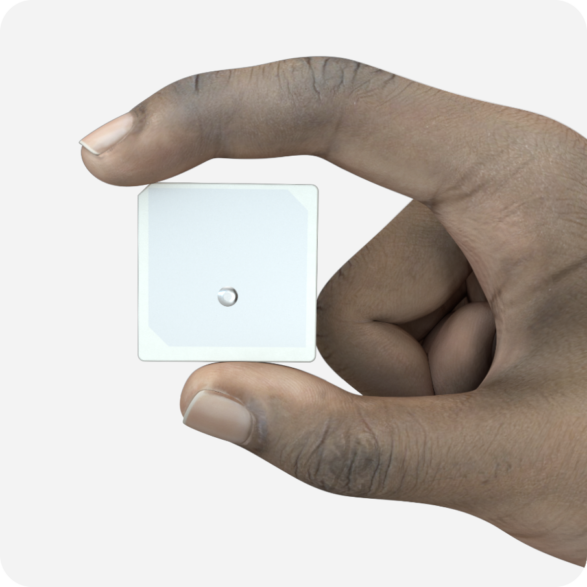

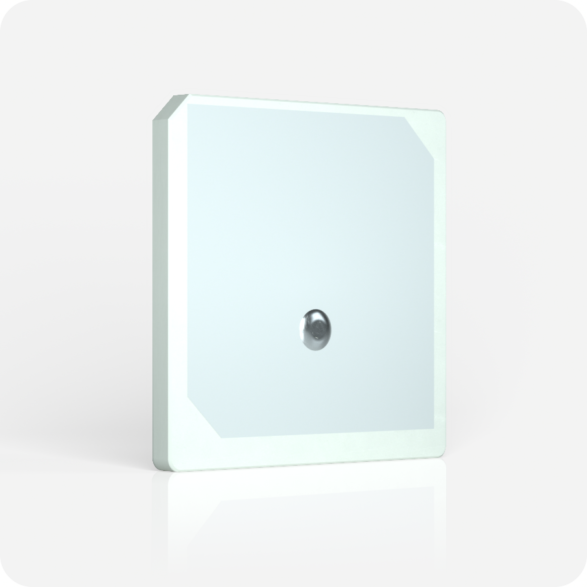

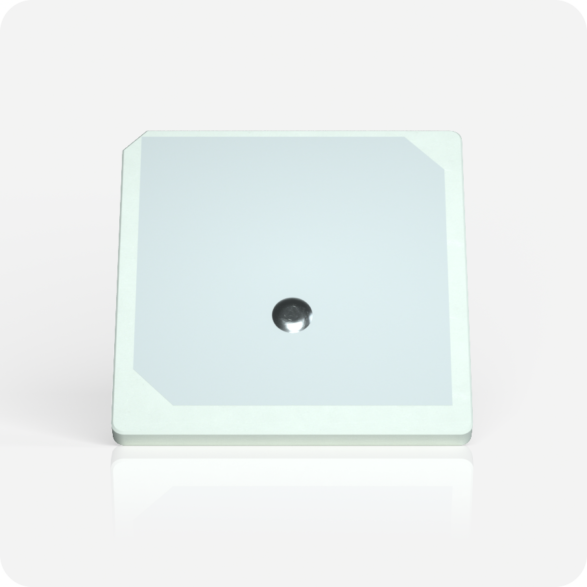

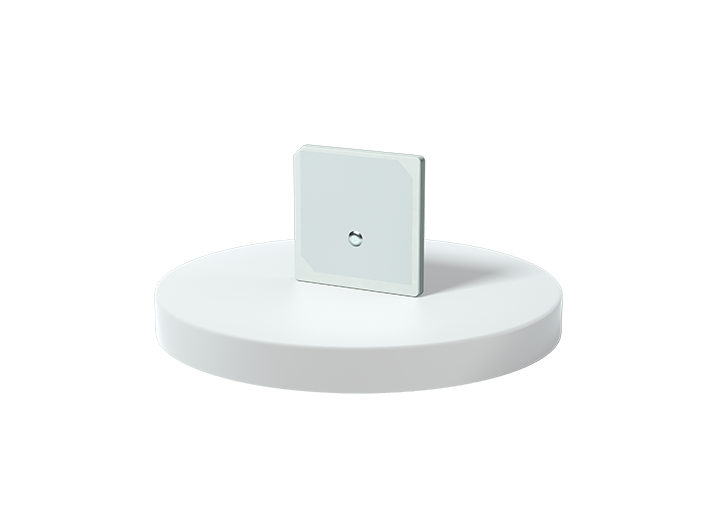

Astronode Patch Antenna

Compact ceramic patch antenna optimized for operation on the Astrocast network

Contact us

BIDIRECTIONAL

Bidirectional communication in the L-Band as well as GNSS reception for tracking purposes.

COST-EFFICIENT

Passive antenna with minimal footprint for cost-effective satellite connectivity.

SMALL FORM FACTOR

L-Band enables the design of compact antennas with good performance in all weather conditions.

Related Astronode products

Astronode DevKit

Everything you need to develop a solution with the Astrocast IoT network

Learn more

Astronode S

Compact surface mount module for highly integrated, low-energy IoT systems

Learn more

Astronode S+

Compact ceramic patch antenna optimized for the Astrocast network

Learn more

Take your IoT strategy further

Do you want to scale up your IoT operations?

Check our Astropreneur Programs

Industry recognition

FAQ

The Astronode Patch Antenna generally works best with a ground plane of at least 65 mm x 65 mm. What’s more, Astrocast will be happy to assist you in selecting the best-suited antenna and its optimal implementation for your application. Get in touch to discuss your specific needs.

There is no need for additional components. However, the antenna line on the PCB has to be carefully designed to match 50 Ohm impedance.

Yes, our multi-band antenna can serve both the data communication over the Astrocast network as well as receive GNSS data for a third-party receiver. Please refer to our technical documentation for design guidelines.

For more information, please visit our Astrocast Documentation Platform.
