ArrowTrack SAT, a hybrid device for remote real-time monitoring

arrowtracksat_iot_astrocast_header_jpg_
arrowspot-logo-partner

ArrowSpot

Total Supply Chain & Asset Control

Our partner ArrowSpot has leveraged the Astrocast IoT Network using cost-efficient, low-power, secured, direct-to-satellite connectivity to develop the ArrowTrack SAT device. Meeting the highest standards of the worldwide transportation industry, ArrowTrack SAT is a hybrid IoT connectivity device for remote, real-time monitoring and tracking anywhere, everywhere for containers, trailers, chassis, and heavy equipment.

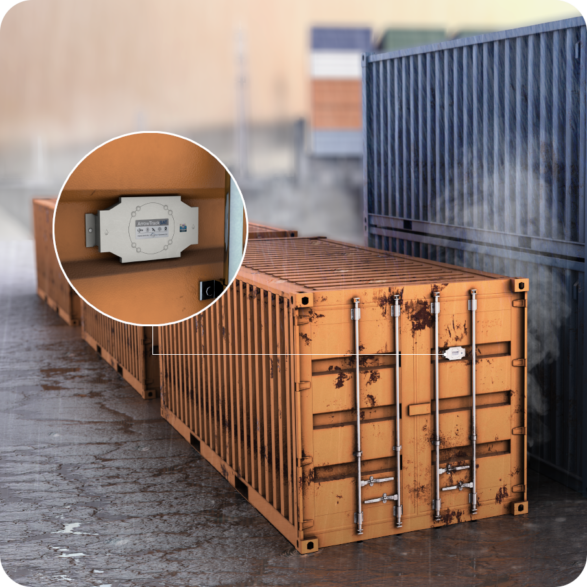

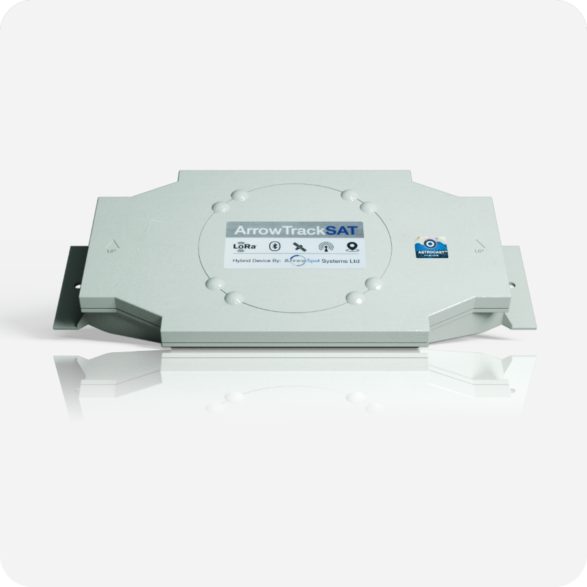

arrowtracksat_iot_astrocast_front_ arrowtracksat_iot_astrocast_container_iot_tracking_

Hybrid asset tracking device for real-time monitoring

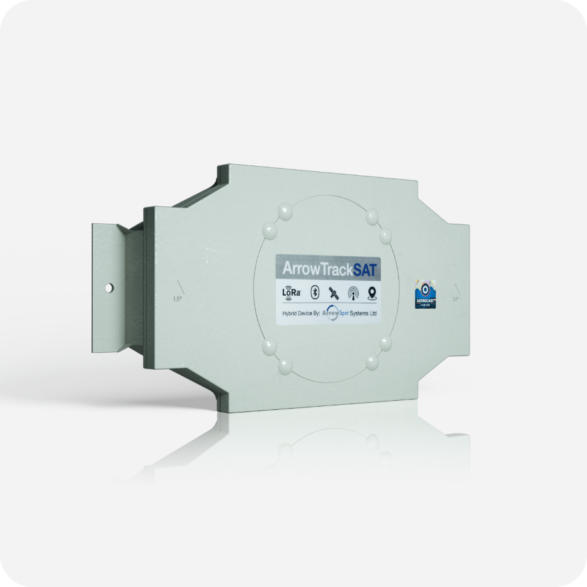

ArrowTrack SAT

  • Dimensions: 255mm x 125mm x 32mm
  • Weight: 700 gr
  • Operating temperature range: -40°C to 80°C
  • Power supply: built-in long-lasting +/- 8 years of operation 12Ah batteries
  • Sensors: 3-Axis Accelerometer (impact, temperature, and door sensors)
  • Processor: low-power with advanced algorithms and integrated memory for user data storage
  • Location: GPS, GLONASS, BeiDou/Compass, Galileo, QZSS
  • Communication:
    • Cellular, Cat M1/Cat NB1, 2G
    • LEO Satellite
    • LoRa
    • Bluetooth 5

* the product is capable of receiving data from other sensors and transmit it via cellular/satellite
