Plan1
$1.30/month
Take your IoT strategy further
Astrocast is the most comprehensive Satellite IoT Service available in the market
BIDIRECTIONAL
Reliable connection thanks to acknowledged messages from and to your IoT assets.
COST-EFFICIENT
Compact system size and affordable data plans enable a cost-effective global communication service.
LOW-ENERGY
Optimized hardware, communication protocol and network for low energy operation and longest battery life.
Discover the Astronode portfolio
Unboxing the Astronode DevKit
The Astronode DevKit has the Astronode S architecture at its core, enabling you to quickly do a proof of concept or connect your assets to the Astrocast nanosatellite network. With the Astronode DevKit, you can easily connect and test our network from any computer. The box contains:
- Quick Start Guide
- Satellite DevKit Board in IP68 housing and connected
- USB to RS232 cable
- Wi-Fi DevKit Board
- USB to UART cable

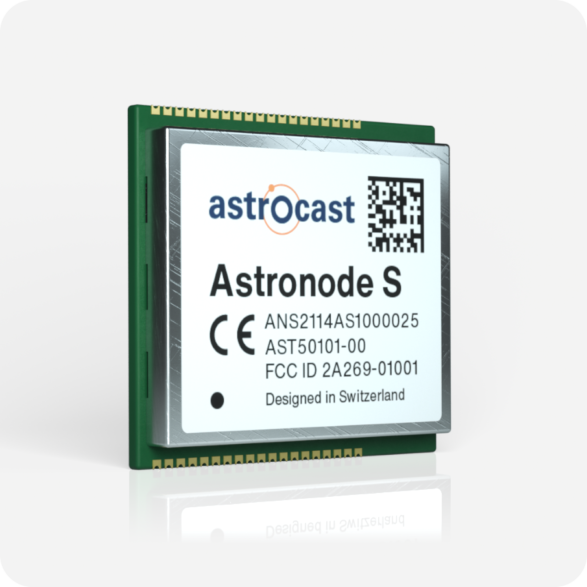

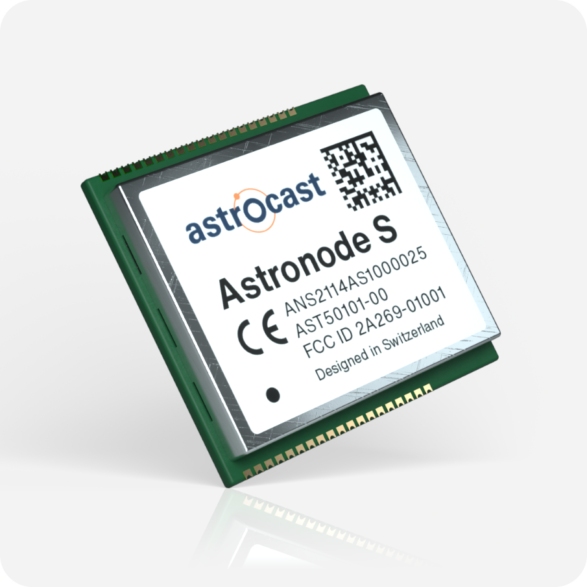

A bidirectional satellite communication module with a serial interface and a compact, surface mount form factor
Astronode S
$49
discount on volume applies
- Power supply: +3.3 VDC
- Peak power consumption (RF Tx): <0.35 W
- Deep sleep current: <500 nA
- Serial interface: 3.3 V UART
- Antenna connection via solder pin
- Encryption: Two-level 256-bit AES with unique device key
- Dimensions: 35 mm x 31 mm x 4.1 mm
- Footprint: Castellated pads
- Certified: CE & FCC
Bringing your system as close to satellite connectivity as a cable connection

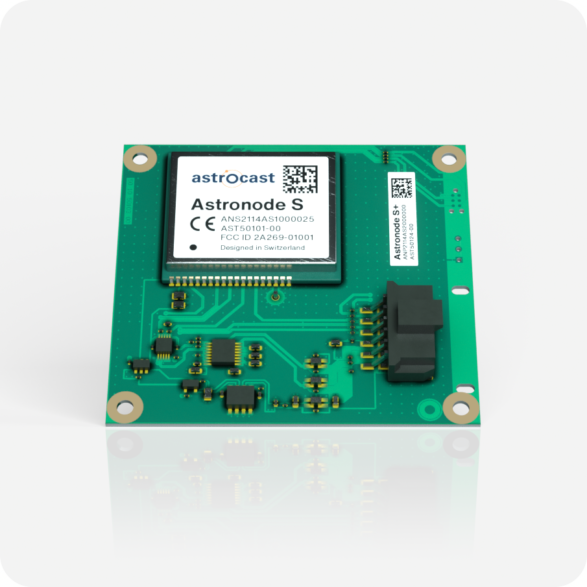

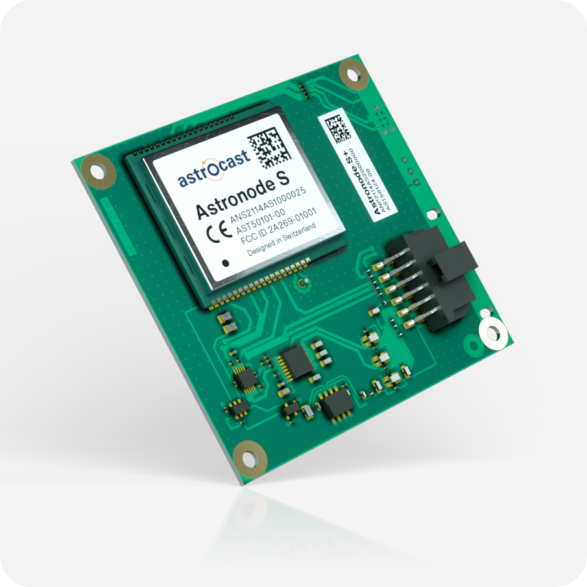

Astronode S+
$79
discount on volume applies
- Power supply options: +3.3 VDC and +5 V
- Peak power consumption (RF Tx): <0.35 W
- Deep sleep current: <500 nA
- Interface options
- 3.3 V UART and Astronode S digital pins
- 5 V RS232
- Connector: Molex Nano-Fit
- Integrated Astronode Patch Antenna (L-Band)
- Dimensions: 70 mm x 65 mm x 14.15 mm
- Certified: CE & FCC
A compact and low profile ceramic antenna optimized for bidirectional communication in Astrocast's nanosatellite IoT network
Astronode Patch Antenna
$3.90
discount on volume applies
- Wide beamwidth
- L-Band: 1.5 GHz & 1.6 GHz
- GNSS reception: L1 band
- Impedance: 50 Ohm
- Dimensions: 35 mm x 35 mm x 4 mm
- Weight: 18 g
The Astronode Product Portfolio
Do you know what our portfolio suite has to offer? With Astrocast, you get access to a one-stop-shop Satellite IoT service, including hardware components, flexible subscription plans, and highly qualified customer service. This is ideal for customers looking at integrating Satellite IoT connectivity into their solutions in a seamless way.
Read moreDiscover our data plans
Plan5
$2.40/month
Plan15
$3.50/month
Plan30
$6/month
Plan60
$11/month
No activation fee, no hidden fee.
Automated billing system applies the most cost-effective plan for your devices.
